SuperSteel® 8-Strand Rope

SuperSteel® is made out of high-strength SuperSteel fiber creates a rope that is over 45~50% stronger than standard polypropylene products and excellent abrasion resistance

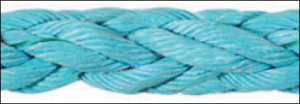

Structure:

Applications:
Mooring Line
Tug Assist Line
Tow Line
Offshore Line
Anchor Lines
Specification:
» Materials: High Tenacity Polypropylene
» Construction: 8 Braided
» Specific Gravity: .91 (Float)
» Melting Point: 165 Celsius
» Water Absorption: None
» UV Resistance: Good
» Abrasion Resistance: Good
» Elongation at Break: 20~22%
DIA CIRC. WEIGHT BREAKING STRENGTH
INCH MM INCH MM LBS/100FT AVE(LBS) MIN(LBS)
 1 24 3 72  19.40 29,040  26,400
1-1/8 28 3-1/2 84 26.50 38,610 35,100
 1-5/16 32 4 96 34.30 49,390  44,900
 1-1/2 36 4-1/2 108 43.10 61,380 55,800
 1-5/8 40 5 120 53.10 75,680 68,800
1-3/4 44 5-1/2 132 65.50 90,420  82,200
 2 48 6 144 80.20 110,660 100,600
 2-1/8 52 6-1/2 156 93.50 127,490 115,900
 2-1/4 56 7 168 108.50 145,970 132,700
 2-1/2 60 7-1/2 180  124.40 166,760 151,600
2-5/8 64 8 192 141.10 187,550  170,500
2-3/4 68 8-1/2 204 156.50 209,660 190,600
3 72  9 216 178.10 238,590 216,900
3-1/4 80 10 240 220.00 288,750 262,500
3-5/8 88 11 264  259.40 340,450 309,500
4 96 12 288 314.50 407,330 370,300
4-1/4 104  13 312 368.60 477,290 433,900
4-5/8 112  14 336 426.90 552,860 502,600
5 120 15 360 481.40 623,480 566,800
