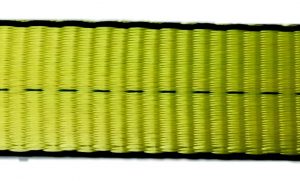

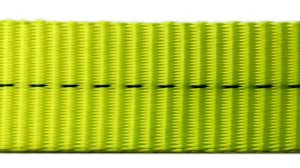

SYNTHETIC LIFTING WEBBING MATERIAL

  • We offer a full line of Polyester or Nylon Sling Webbing.
  • We can stencil your name and logo on webbing.
  • There are wide variety of colors available.
  • Safety Warning Yarns included
  • Identification Yarns available
  • It can be coated or treated.
  • Our specialized "BLACK GUARD EDGE" significantly increases the life of sling webbing.
  • This unique technology provides a solution to premature edge failure & better

HEAVY DUTY
9800LBS/INCH

WIDTH (INCH) MIN. B/S (LBS)
1" 9,800
2" 19,600
3" 29,400
4" 39,200
6" 58,800
8" 78,400
10" 98,000
12" 117,600

LIGHT DUTY
7500LBS/INCH

WIDTH (INCH) MIN. B/S (LBS)
1" 9,800
2" 19,600
3" 29,400
4" 39,200
6" 58,800
8" 78,400
10" 98,000
12" 117,600

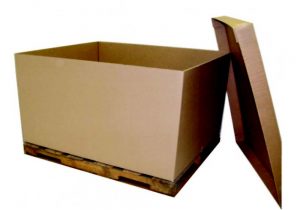

STANDARD FOOTAGE IN CARTON BOX
(based on heavy duty materials: MBS: 9800 lbs/inch)

WIDTH FOOTAGE(FT) # OF CUT
1” 7,500 3~4
2” 3,600 1~3
3” 2,700 1~3
4” 1,800 1~2
6” 1,200 1~2
8” 900 1~2
10” 700 1~2
12” 600 1~2

* Longer length in a bigger carton box available for
efficient design and fabrication with minimal waste.
